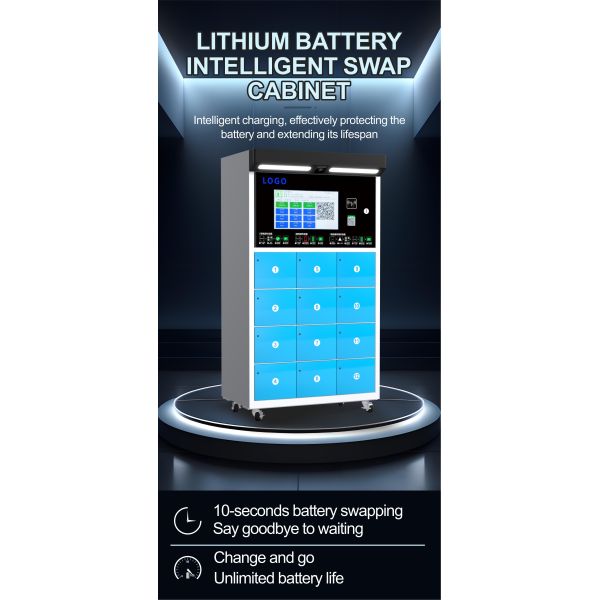

IOT Management Battery Swapping Cabinet Stations For Electric Car Eco Friendly

Brand Name : GT

Model Number : B02

Place of Origin : Guangdong, China

MOQ : 1-50 sets

Price : 850-1500 usd/set

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 3000/month

Delivery Time : 20-30 days

Packaging Details : Fumigation-Free Wooden Box

Specification : L1110*W670*H1888mm

Number of Charging Circuits : 12 Circuits

Overall Machine Output Power : ≤ 9KW

Single Output Power : ≤ 750W

Display Specifications : 21 Inches

Maximum Current of Each Warehouse : 10A

Input Voltage Range : Single phase AC 220V±20%

Contact Now

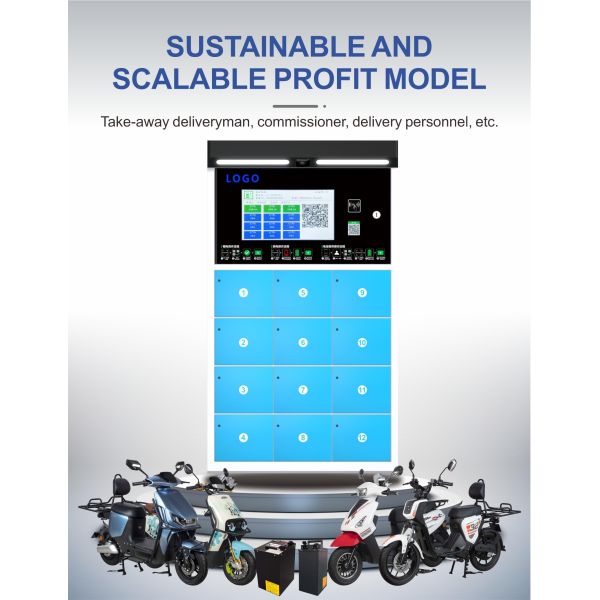

Smart Battery Swapping Cabinet for Electric Motorcycle with 21 Inch Display (OEM/ODM)

The power swap cabinet is a specialized system designed for electric low-speed vehicles including electric tricycles, motorcycles, and low-speed four-wheelers. This innovative solution enables users to quickly exchange depleted batteries for fully charged ones, eliminating lengthy charging waits.

Key Specifications

Specification	Details
Dimensions	L1110 × W670 × H1888mm
Warehouse Size	Customizable
Charging Circuits	12 Circuits
Display	21 Inches
Output Power	≤ 9KW (Overall), ≤ 750W (Single)
Maximum Current	10A per Warehouse
Standby Power	≤50W
Charging Efficiency	≥93%
Input Voltage	Single phase AC 220V ±20%
Frequency	50Hz ±1Hz
Battery Compatibility	Lithium battery (with 485 communication)
Payment Methods	APP/IC Card
Protection Level	IP53/IP54

Advanced Features

Rapid Battery Exchange: Dramatically reduces user waiting time compared to conventional charging
Intelligent Monitoring: Built-in system tracks battery status including charge level and health metrics
Enhanced Safety: Multiple protection mechanisms prevent overcharging, short circuits, and other hazards
User-Friendly Interface: Touchscreen display and mobile app provide intuitive operation

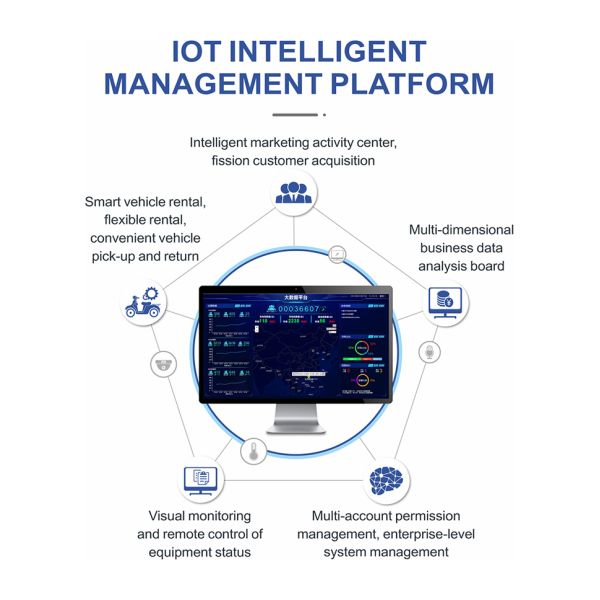

Network Connectivity: Remote monitoring and management capabilities for multiple stations
Eco-Friendly Solution: Zero emissions with significantly lower operating costs than fuel vehicles

Ideal Applications

These battery swapping cabinets are optimally deployed in urban environments with high electric vehicle usage. Common installation sites include transportation hubs, commercial districts, and residential areas where they provide convenient access for daily commuters and delivery services.
